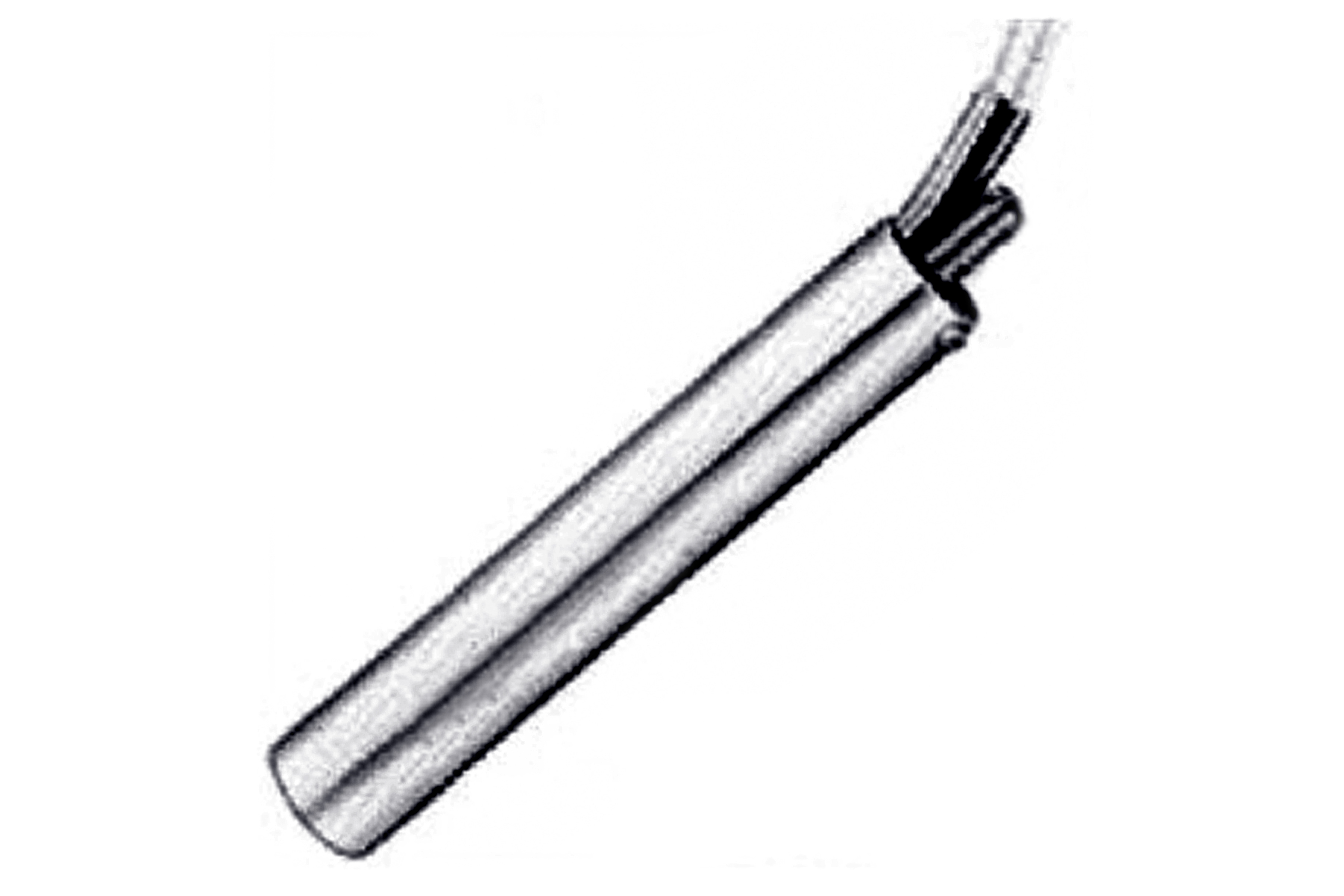

Interchange for Fenwal 01-017000-000 and Fenwal 01-017023-000 - Cartridge Head

Cartridge Head Thermostat Interchange to Fenwal Series 17000Interchange to Fenwal Series 17000 Specs

Interchange to Fenwal Series 17000

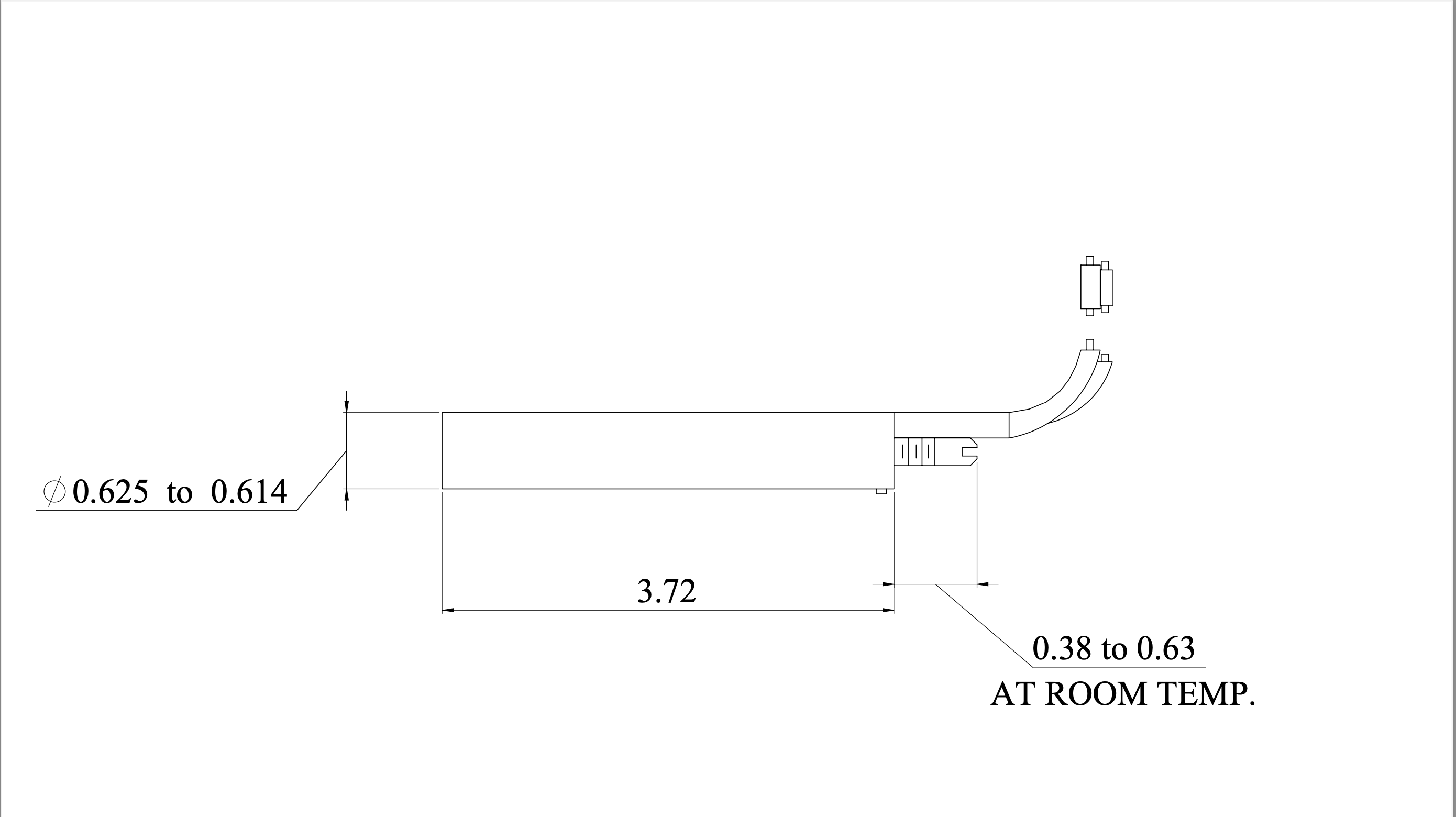

  • This has all the desirable features of the ideal thermostat - high sensitivity, wide adjustment range, small size, rugged construction, vibration resistance, and low cost. The unit can be inserted into a .625 in. (15.88 mm) reamed hole. Approximate weight is 2.5 ounces (70 grams).
    Temp Range:-100 F to 600 F
  • S. S. Shell.
    Direct Replacement for Fenwal 01-017000-0000 Interchange TempSetPoint Catlog Number 30011
    Contacts Open on Temperature Rise

    Direct Replacement for Fenwal 01-017023-0000 Interchange TempSetPoint Catlog Number 30012
    Contacts Close on Temperature Rise

  • Rating.
    AC
    10 amps/120 volts
    5 amps/240 volts
    DC
    5 amps/24 volts
