Interchange for Fenwal 01-018002-000 and Fenwal 01-018023-000 - Coupling Head

Counpling Head Thermostat, Interchange to Fenwal Series 18000Interchange to Fenwal Series 18000 Specs

Interchange to Fenwal Series 18000

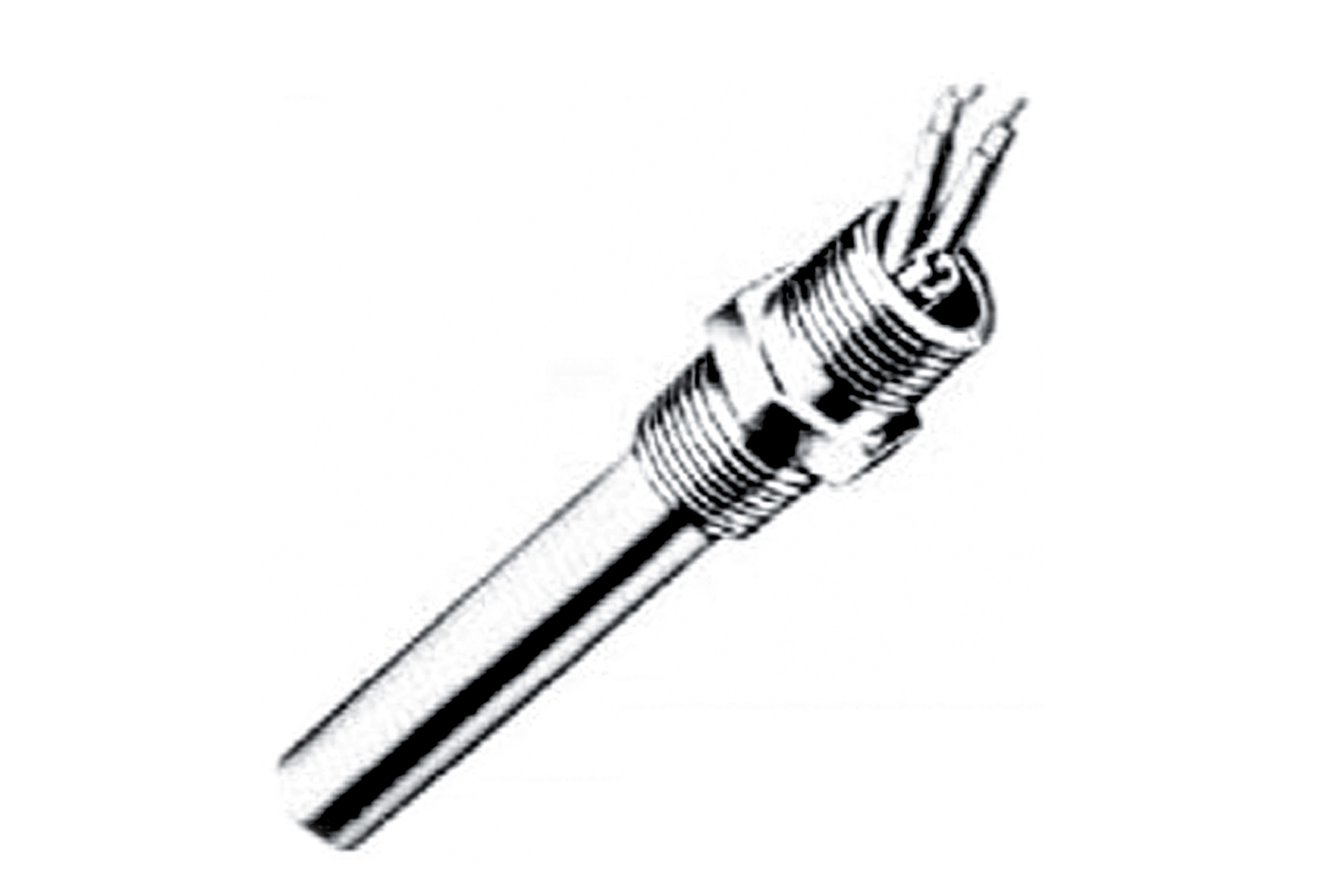

  • This has all the desirable features of the ideal thermostat - high sensitivity, wide adjustment range, small size, rugged construction, vibration resistance, and low cost. The Coupling Head Type has all the features of the Cartridge Head plus hexagonal mounting section with pipe threads at each end. This unit may be directly attached to electrical conduit. Approximate weight is 5 ounces (140 grams).
    Temp. Range: -100 F to 600 F
  • S.S. Shell and Brass Head.
    Direct Replacement for Fenwal 01-018002-0000 Interchange TempSetPoint Catlog Number 30051
    Contacts Open on Temperature Rise

    Direct Replacement for Fenwal 01-018023-0000 Interchange TempSetPoint Catlog Number 30052
    Contacts Close on Temperature Rise

  • Rating.
    AC
    10 amps/120 volts
    5 amps/240 volts
    DC
    5 amps/24 volts
