Interchange for Fenwal 01-017102-000 and Fenwal 01-017123-000 - Hex Head

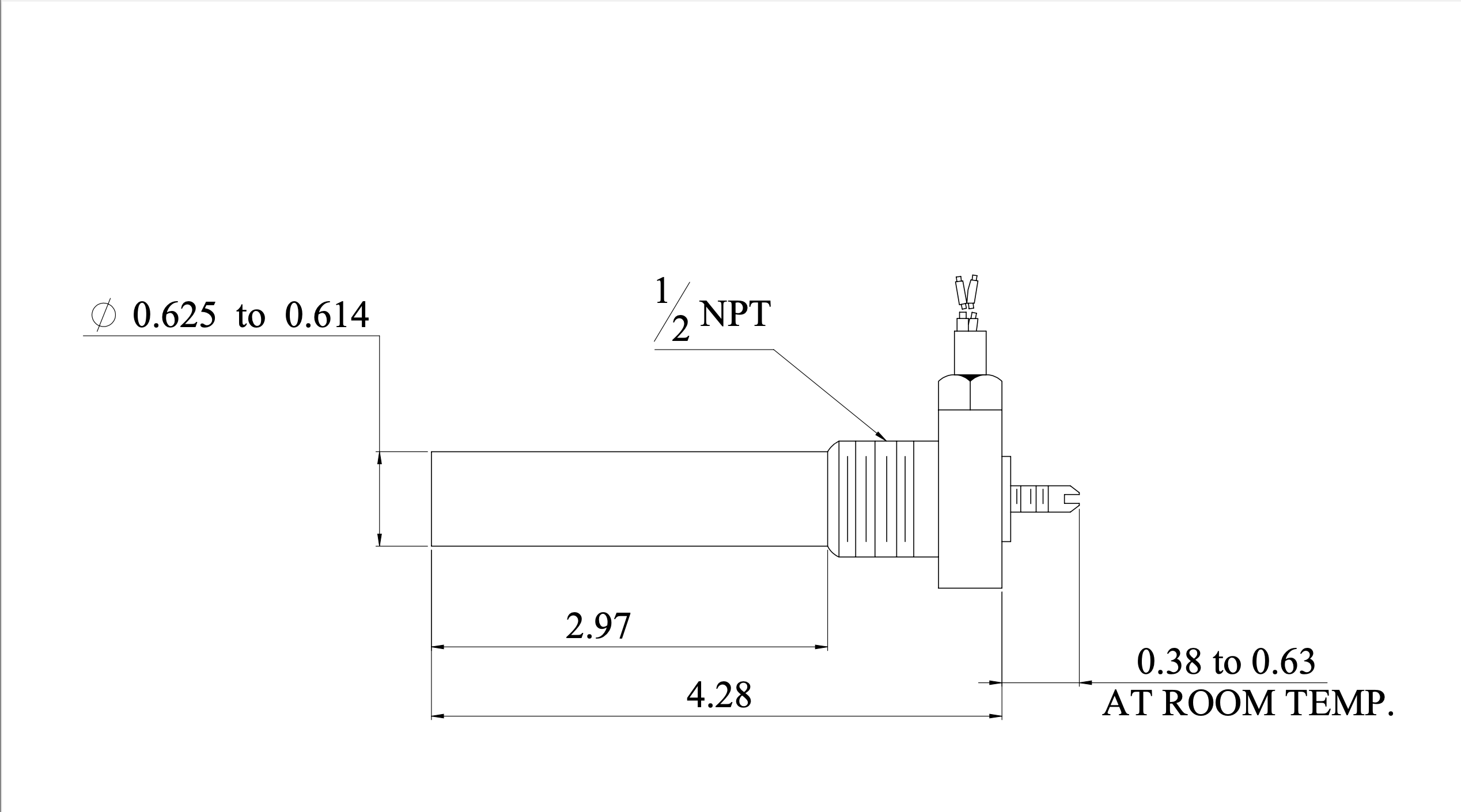

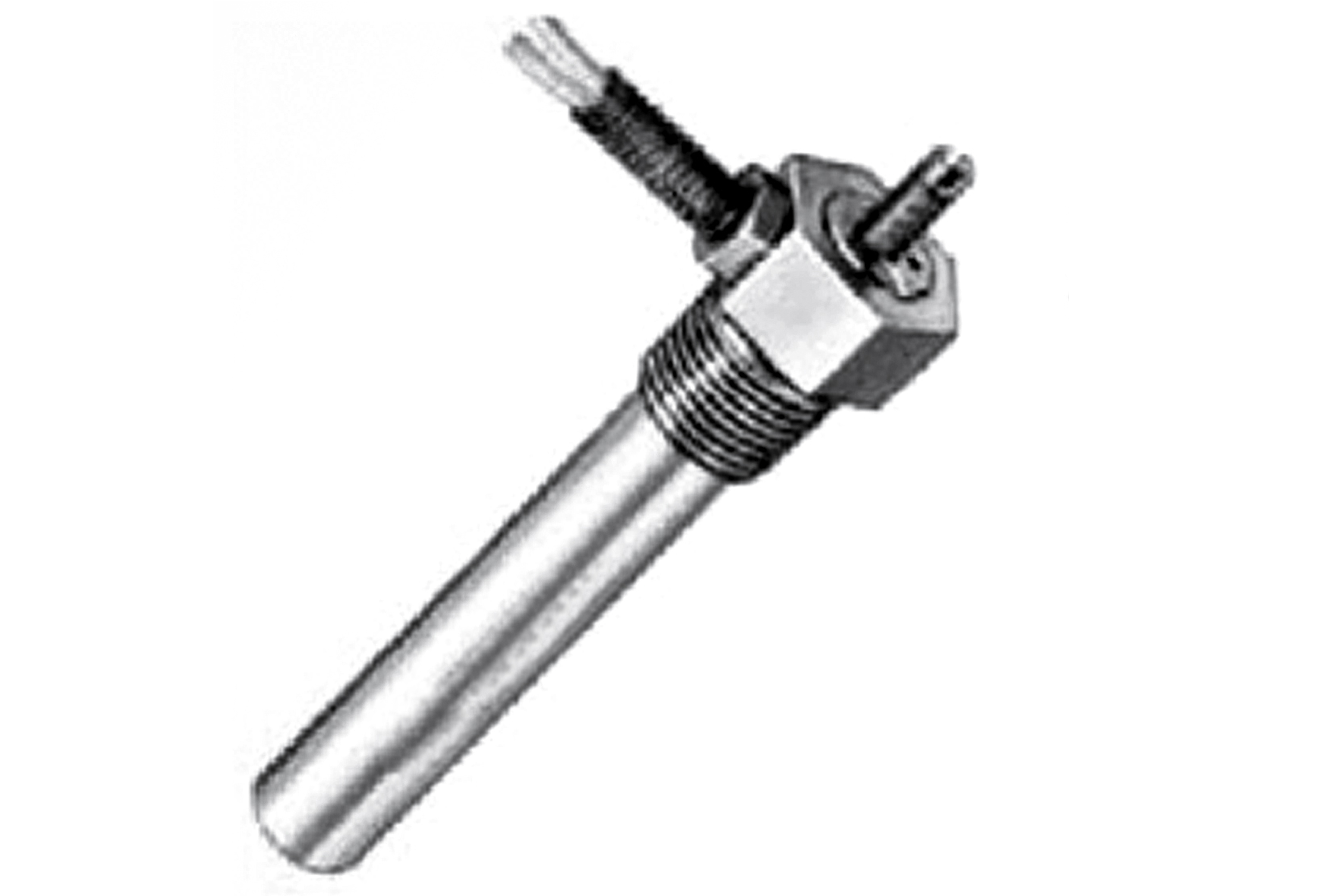

Hex Head Thermostat, Interchange to Fenwal Series 17100Interchange to Fenwal Series 17100 Specs

Interchange to Fenwal Series 17100

  • This has all the desirable features of the ideal thermostat - high sensitivity, wide adjustment range, small size, rugged construction, vibration resistance, and low cost. Hex head has all the features of the Cartridge Head plus the addition of a pipe thread for mounting. Approximate weight is 5 ounces (140 grams)
    Temp Range:-100 F to 600 F
  • S. S. Shell and Brass Head.
    Direct Replacement for Fenwal 01-017102-0000 Interchange TempSetPoint Catlog Number 30021
    Contacts Open on Temperature Rise

    Direct Replacement for Fenwal 01-017123-0000 Interchange TempSetPoint Catlog Number 30022
    Contacts Close on Temperature Rise

  • Rating.
    AC
    10 amps/120 volts
    5 amps/240 volts
    DC
    5 amps/24 volts
